Leader ElastaGraph SG Pipe Flange Gaskets
Description

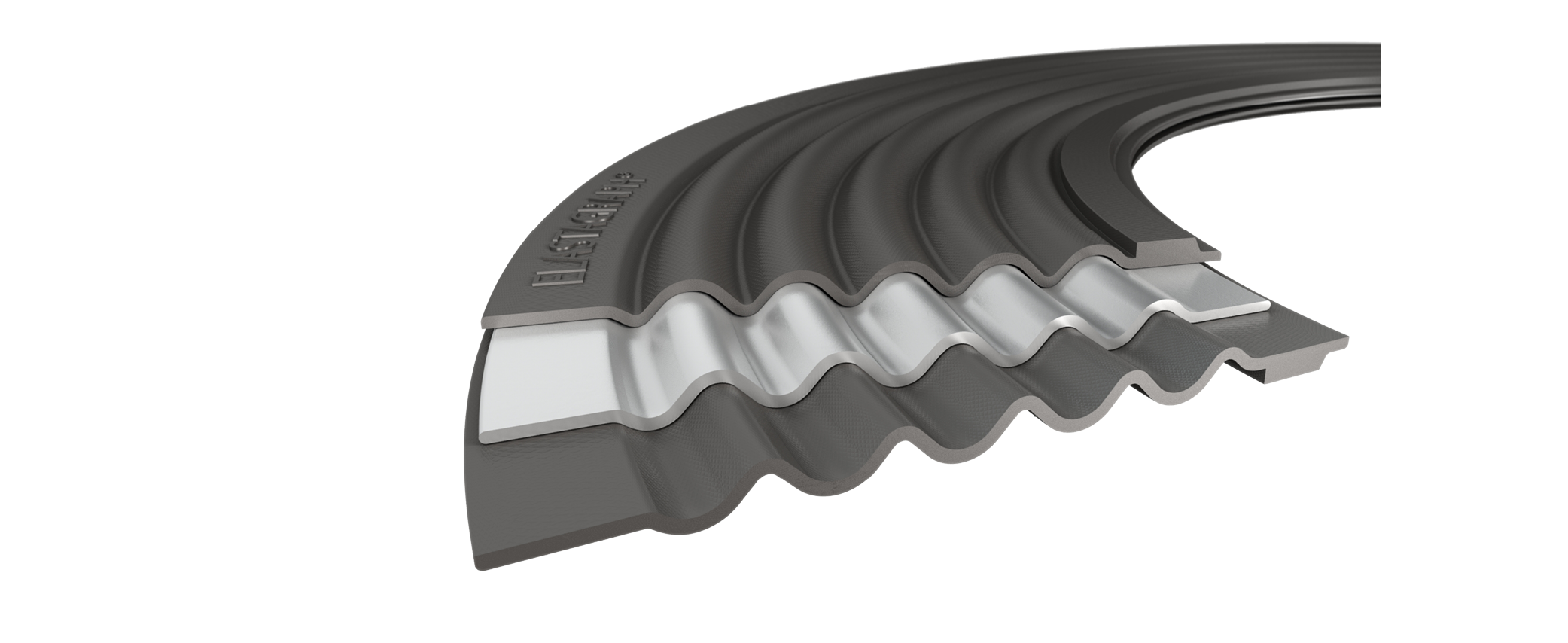

Elastagraph™ gaskets are produced by infusing seamless layers of flexible graphite at varying densities and thicknessess over a corrugated metallic core. Elastagraph™ utilizes a unique corrugated pattern which increases the depth of the groove and the pitch at the peak of the corrugation. This greatly improves the gaskets sealability over traditional corrugated designs.
Downloads
Product Data SheetApplication
Elastagraph SG is designed specifically to solve fugitive emission and compliance problems. It also has excellent performance in bolted joints that experience thermal cycling or limited initial bolt load. Elastagraph™ is the most economical way of meeting low emission requirements.
Advtantages
Excellent sealing against vaporous and media like gases and thermal (hot) oil.
Chemical Compatiblity
Elastagraph SG flange gaskets can be used in a wide variety of media, i.e. a pH range varying from 0-14. Application / compatibility guide is available on request. Pressure from vacuum to ASME class 600lbs and DIN/EN class PN40. Temperature from -400 ºF to 850 ºF (steam 1200 ºF).
Delivery Options
All non-standard pipe flange configurations with and without bolt holes according customer specifications or Edrawing.
Temperature
Elastagraph SG flange gaskets can be used in a wide variety of media, i.e. a pH range varying from 0-14. Application / compatibility guide is available on request. Pressure from vacuum to ASME class 600lbs and DIN/EN class PN40. Temperature from -400 ºF to 850 ºF (steam 1200 ºF).
Approvals & Certificates
- Firesafe API 6FB
- DVGW
- BAM
- TA-Luft
- BAM
- TA-Luft
- DVGW
- Firesafe API 6FB
Sealing Characteristics
- Low porosity
- Very low emmission
- Perfect sealability on low bolt load
- High recovery
- Suitable for irregular flanges and surfaces
- To be used for elevated and cryogenic temperatures
- Improved handle ability
- Minimum sticking to flange surfaces
| max Temperature [°F] | 850 |
| max Temperature [°C] | 550 |
| max Pressure [psi] | ASME B16.5 600 Class |
| M-Value | 2 |
| Y- Value [psi] | 1500 |
| Gasket required flange roughness [Ra micron] | 3,2-6,3 |
| Gasket required flange roughness [RMS] | 125-250 |
| max Seating stress [Qsmax bei RT EN13555] [n/mm2] | 225 |
| Advice Seating stress at assembly [psi] | 8000 |
| ROTT [Gb] | 32 |
| ROTT [a] | 0.718 |
| ROTT [Gs"] | 0.001 |
